Framing a Thick Magazine or Newspaper

Framing a thick magazine or newspaper presents some challenges. Each moulding has a physical limit on the thickness that it can accomodate. The depth of each frame is called it's 'rabbit'. As shown in the image on the right, it is the distance from the lip of the frame to the back.

The rabbit for most moulding used for normal picture frames is between 7/16" and 1/2". The moulding needed for framing your collectible items needs to have a greater rabbit measurement. Most of the mouldings on this site have a rabbit measurement of at least 5/8".

But even these are not thick enough for some magazines and newspapers. The page for each moulding shows the maximum thickness that that moulding can accomodate. For my most popular frames like #203 and #207 with a 5/8" rabbit depth, the maximum thickness that can be accomodated is 3/8" for a Value Frame and 1/4" for a Changeable Frame. By using a thinner backing, I can accomodate an additional 1/16".

What to do when the item you want framed is too thick for the moulding you want? I can accomodate up to an additional 1/4" of depth by making your frame a little differently. The rest of this page is going to discuss this and use a Value Frame as an example. The process will be somewhat similar for a Changeable Frame.

We start by taking a look at the back of a normal Value Frame. The backing is held in place by Framing Points that are bendable and allow you to insert your item. Click on any of the images for a larger view. You can see that there is only so much room to insert these framing points. Beyond a certain thickness they can't be used.

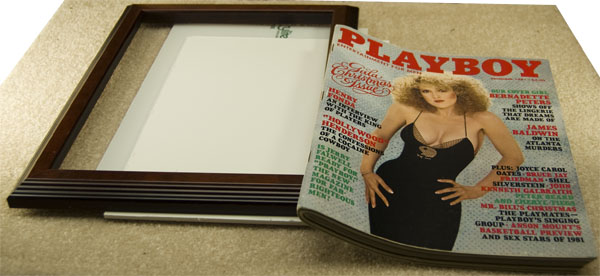

We now take a look at how to accomodate a magazine that is too thick for the moulding selected. The magazine is a 1/2" thick December 1981 Playboy with the lovely Bernadette Peters on the cover. The moulding is #802 Cherry Finish which can accomodate a maximum 5/16" thickness in a Value Frame. We are 3/16" too thick for this frame.

Here I have placed the glazing, magazine and backing in the frame. You can see that it won't fit.

I have replaced the foam core backing with a thinner matboard backing but it is still too thick.

Here is the frame after several changes where made to accomodate the thickness of the magazine. Offset clips have been used to hold the magazine and backing in place. A wood strip was added to the top so that the sawtooth hanger will lie flat against the wall. Without this, the frame wouldn't lie flat against the wall. Although not show, thicker bumpers are also used on the bottom.

Here is the final frame viewed from the front.

And here it is viewed from the side. Although the frame is a slight bit further from the wall than a normal frame, it is not noticible unless you put your face right up against the wall.

Mouldings for thicker items

The following are mouldings with deeper rabbits that can accomodate thicker items. The maximum thickness for both Value Frames and Changeable Frames are show as well as the price for a typically sized magazine and newspaper frame.

Mouldings for thicker items

The following are mouldings with deeper rabbits that can accomodate thicker items. Hover over each moulding to see the maximum thickness for that moulding.

310 Matte Black Deep
311 Matte Black Deep
312 Matte Black Roof Top Deep
316 Matte Black Deep
314 Matte Black Tall
315 Matte Black w/Rounded Edges
319 Matte Black Deep
772 Semi Gloss Black Onyx
762 Moire Gloss Black Laquer
855 Winston Walnut
860 Coffee Brown
861 Pecan
862 Cherry
863 Walnut
237 Ornate Gold w/Black Edge
763 Moire Gloss Black Laquer
764 Moire Gloss Black Laquer
320 Liso Silver Deep
324 Liso Gold
325 Liso Silver
930 Light Barnwood
931 Brown Barnwood
932
933 Tan Barnwood
360 Green w/Gold Lip
361 Blue w/Gold Lip
362 Brown w/Gold Lip
363 Black w/Gold Lip
960 Olea Gray Veneer
961 Olea Coffee Brown Veneer
962 Olea Cherry Veneer
963 Olea Taupe Veneer
964 Olea Pecan Veneer
965 Olea Gray Veneer
966 Olea Coffee Brown Veneer
967 Olea Cherry Veneer
968 Olea Taupe Veneer
969 Olea Pecan Veneer
970 D'Orme Gray Veneer
971 D'Orme Coffee Brown Veneer
972 D'Orme Cherry Veneer
973 D'Orme Taupe Veneer
974 D'Orme Light Pecan Veneer
864 Black
900 Coffee Brown
901 Pecan
902 Cherry
903 Walnut
904 Natural
905 Black
911 Matte White
921 Gloss White
922 Gloss White
923 Gloss White
